    CNC cutting hollowed aluminum panel with PVDF or powder coated is a kind of high-grade architectural ornament material for buildings

    Technical Specification:

    Coating: PVDF or Powder coated,

    Color: Follow your requirements,

    Thickness:2.0~10.0mm,or according to your requirements,

    Size: Follow your design (less than 1800 x 6000mm).

    Cutting type: According to your requirements.


    Inquire Now

    CNC cutting hollowed aluminum panel with PVDF or powder coated is a kind of high-grade architectural ornament material for buildings like business center, subway station, airport, train station and so on.

    CNC cutting hollowed aluminum panel with PVDF or powder coated can keep more than 15 years, and it can be processed into many different shapes by your design.

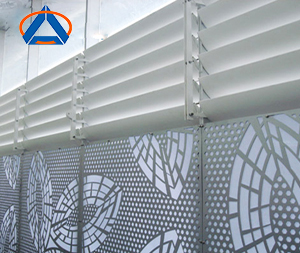

    People usually use CNC cutting hollowed aluminum panel for curtain wall panels or screen panel, you can design the shape of cutting area in the drawing, and we can finish it for you. Many of business buildings, airport, subway, station and train station use CNC cutting hollowed aluminum panel. It’s beautiful and artistic.


    Technical Specification:

    Coating: PVDF or Powder coated,

    Color: Follow your requirements,

    Thickness:2.0~10.0mm,or according to your requirements,

    Size: Follow your design (less than 1800 x 6000mm).

    Cutting type: According to your requirements.


    No.

    item

    Performance

    1

    Appearance quality

    No flow lines, no streaks, no blisters, no foreign substance, no other surface imperfections

    2

    Film thickness

    Average: 48umMin. 41um

    3

    Dry-fil hardness

    ≥3H

    4

    Gloss value

    Gloss value: 34.2~39.1; Average: 37.2

    5

    Impact resistance

    50kg·m, no removal of film from substrate

    6

    Abrasion resistance

    5.3L/um

    7

    Film adhesion

    Drying adhesion

    Grade 0

    Wet adhesion

    Grade 0

    Boiling water adhesion

    Grade 0

    8

    Chemical resistance

    Hydrochloric acid resistance

    No change

    Nitric acid resistance

    No changes such as blistering etc.Δ E=0.75

    Mortar resistance

    No change

    Solvent resistance

    No base exposed

    9

    Salt spray resistance (4000h)

    Grade 1

    10

    Humidity resistance

    Grade 1

    11

    Artificial weathering (4000)

    Color retention

    1.31

    Gloss retention

    85%

    Others

    Grade 0
