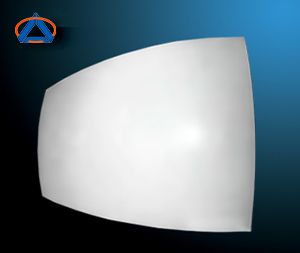

    Aluminum double curved panel with PVDF or powder coated is a kind of high-grade architectural ornament material for buildings.

    Technical Specification:

    Coating: PVDF or Powder coated,

    Color: Follow your requirements,

    Thickness:3.0~5.0mm,or according to your requirements,

    Size: Follow your design (less than 1800*6000mm) .

    Cutting type: According to your requirements

    Inquire Now

    Aluminum double curved panel with PVDF or powder coated is a kind of high-grade architectural ornament material for buildings like business center, subway station, airport, train station and so on.

    aluminum double curved panel with PVDF or powder coated can keep more than 15 years, and it can be processed into many different shapes by your design.

    People usually use aluminum double curved panel for curtain wall panels or pillars, you can design the shape, and we can finish it to meet your requirements. Many of business buildings, airport, subway, station and train station use it. It’s beautiful and durable.



    Technical Specification:

    Coating: PVDF or Powder coated,

    Color: Follow your requirements,

    Thickness:3.0~5.0mm,or according to your requirements,

    Size: Follow your design (less than 1800*6000mm) .

    Cutting type: According to your requirements




    itemPerformance
    1Appearance qualityNo flow lines, no streaks, no blisters,
     no foreign substance,
    no other surface imperfections
    2Film thicknessAverage: 48umMin. 41um
    3Dry-fil hardness≥3H
    4Gloss valueGloss value: 34.2~39.1; Average: 37.2
    5Impact resistance50kg·m, no removal of film from substrate
    6Abrasion resistance5.3L/um
    7Film adhesionDrying adhesionGrade 0
    Wet adhesion Grade 0
    Boiling water adhesionGrade 0
    8Chemical resistanceHydrochloric acid resistanceNo change
    Nitric acid resistanceNo changes such as blistering etc.Δ E=0.75
    Mortar resistanceNo change
    Solvent resistanceNo base exposed
    9Salt spray resistance (4000h)Grade 1
    10Humidity resistanceGrade 1
    11Artificial weathering (4000)Color retention1.31
    Gloss retention85%
    OthersGrade 0
