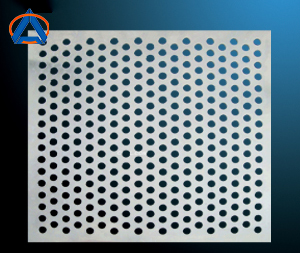

    Aluminum Perforated Panel

    Technical Specification:

    Coating: PVDF or Powder coated,

    Color: Follow your requirements,

    Thickness:2.0~4.0mm,or according to your requirements,

    Size: Follow your design (less than 1800*6000mm).

    Hole type: According to your requirements.




    Inquire Now

    Aluminum perforated panel with PVDF or powder coated is a kind of high-grade architectural ornament material for buildings like business center, subway station, airport, train station and so on.

    Aluminum perforated panel with PVDF or powder coated can keep more than 15 years, and it can be processed into many different shapes by your design.

    People usually use aluminum perforated panel with acoustic wool, So that it can be sound insulation. Many of airport subway station and train station use aluminum perforated panel with acoustic wool in ceiling. It’s beautiful and low noise. It’s also usually used in curtain wall panel, so that the wall will look very beautiful. And some people drawing a design with hole on the panel, it looks realy realy artistic.



    Technical Specification:

    Coating: PVDF or Powder coated,

    Color: Follow your requirements,

    Thickness:2.0~4.0mm,or according to your requirements,

    Size: Follow your design (less than 1800 x 6000mm) .

    Hole type: According to your requirements


    No.

    item

    Performance

    1

    Appearance quality

    No flow lines, no streaks, no blisters, no foreign substance, no other surface imperfections

    2

    Film thickness

    Average: 48umMin. 41um

    3

    Dry-fil hardness

    ≥3H

    4

    Gloss value

    Gloss value: 34.2~39.1; Average: 37.2

    5

    Impact resistance

    50kg·m, no removal of film from substrate

    6

    Abrasion resistance

    5.3L/um

    7

    Film adhesion

    Drying adhesion

    Grade 0

    Wet adhesion

    Grade 0

    Boiling water adhesion

    Grade 0

    8

    Chemical resistance

    Hydrochloric acid resistance

    No change

    Nitric acid resistance

    No changes such as blistering etc.Δ E=0.75

    Mortar resistance

    No change

    Solvent resistance

    No base exposed

    9

    Salt spray resistance (4000h)

    Grade 1

    10

    Humidity resistance

    Grade 1

    11

    Artificial weathering (4000)

    Color retention

    1.31

    Gloss retention

    85%

    Others

    Grade 0
